KDK Ceiling Mount Exhaust Fan 6" 8" 10" — 15TGQZ 20TGQF 25TGQ7

DESCRIPTION

The most common renovation question we get after downlights and ceiling fans is: "Which exhaust fan do I need for my bathroom or kitchen?" The KDK Ceiling Mount Propeller Exhaust Fan is the answer for most Malaysian homes — reliable Japanese engineering, Q-Blade design for quiet operation, and three sizes to match your ceiling opening and room volume.

Available in 6", 8" and 10" — choose by your existing ceiling cut-out size or the room area you need to ventilate. Our team in Ipoh can help you pick the right size if you're not sure.

AVAILABLE MODELS & SPECIFICATIONS

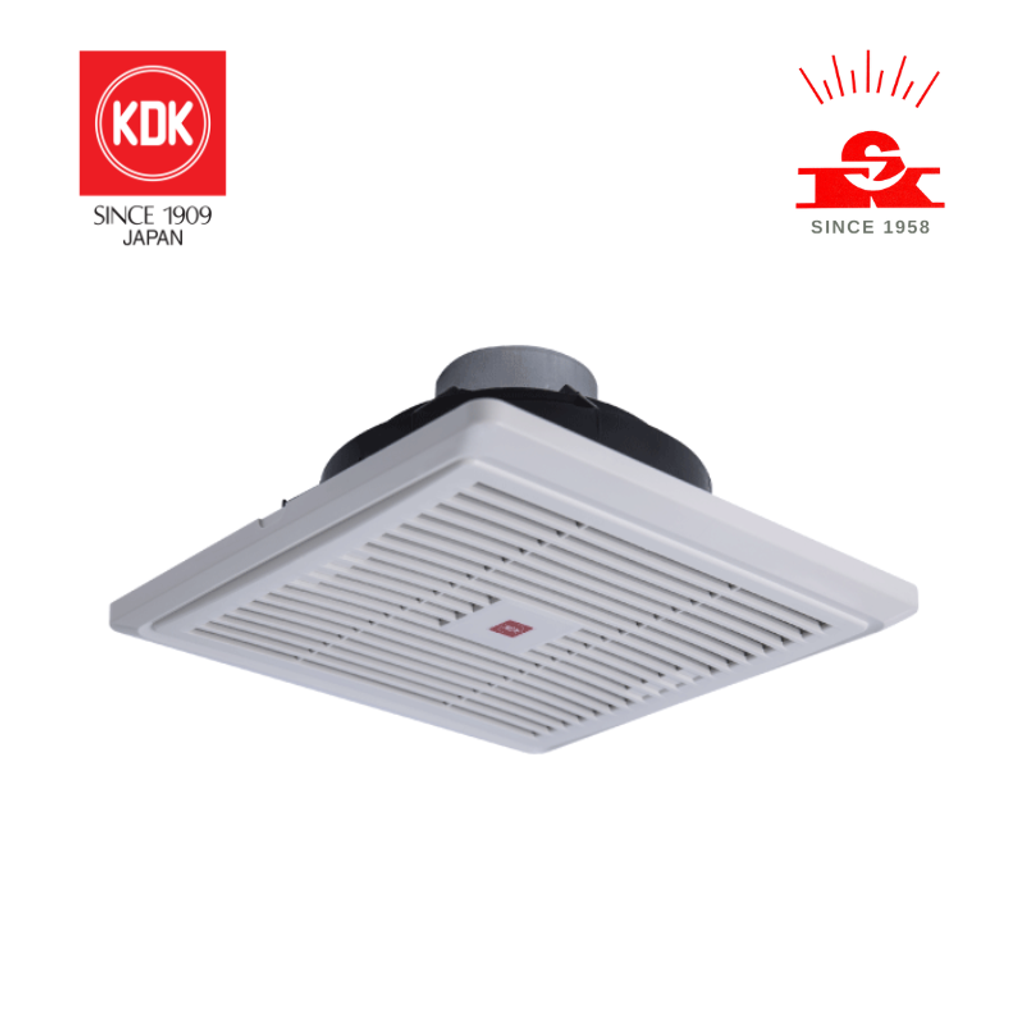

15TGQZ — 6 Inch (15cm)

The most compact option — ideal for small bathrooms, wet rooms and enclosed toilets where a smaller ceiling opening is available or preferred.

• Blade Diameter: 15cm / 6 inches
• Airflow Capacity: 141 CFM
• Motor: 12W, Condenser Type
• Speed: 1,330 RPM
• Voltage: 220–240V / 50Hz
• Noise Level: 35 dB — whisper quiet
• Net Weight: 1.20 kg

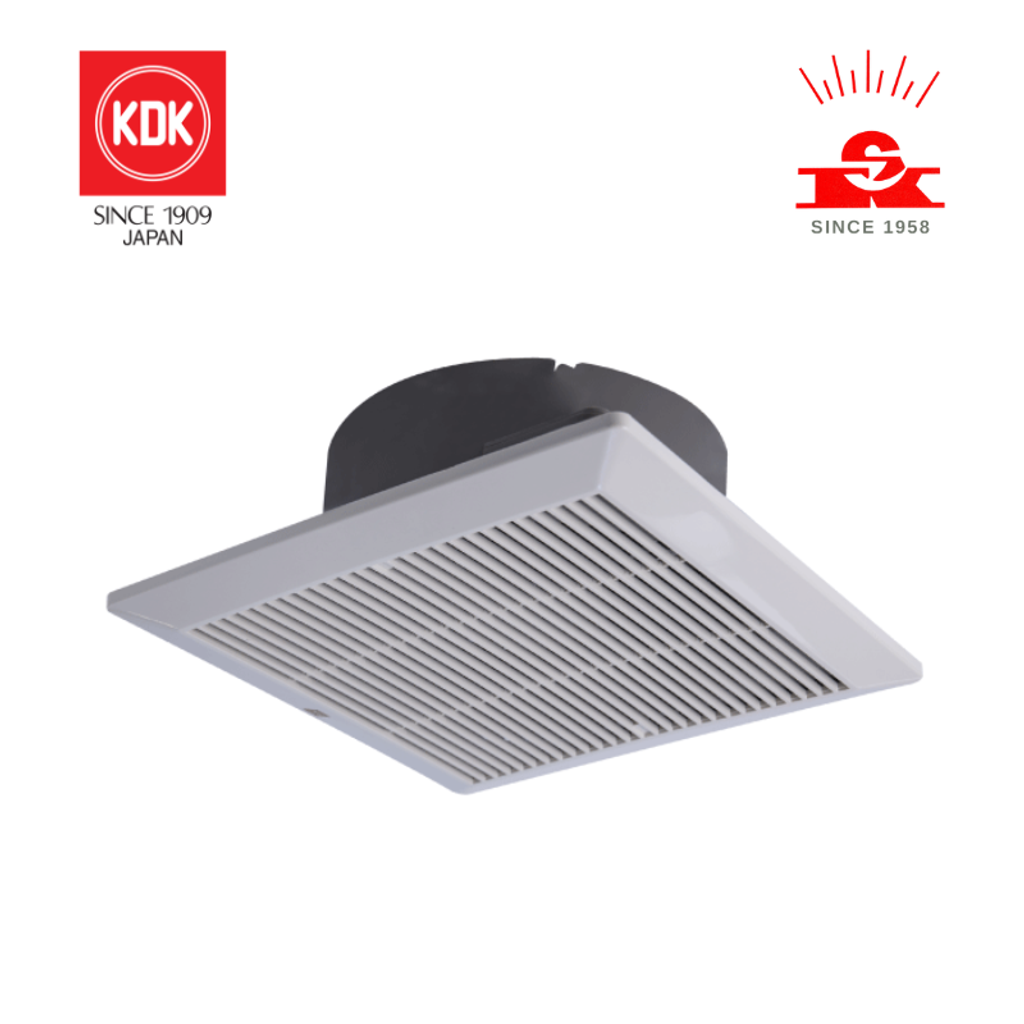

20TGQF — 8 Inch (20cm)

The most popular size for standard Malaysian bathrooms and kitchen utility areas. Strong enough for medium-sized rooms while remaining quiet and energy efficient.

• Blade Diameter: 20cm / 8 inches
• Airflow Capacity: 312 CFM
• Motor: 20W, Condenser Type
• Speed: 1,250 RPM
• Voltage: 220–240V / 50Hz
• Noise Level: 41 dB
• Net Weight: 1.30 kg

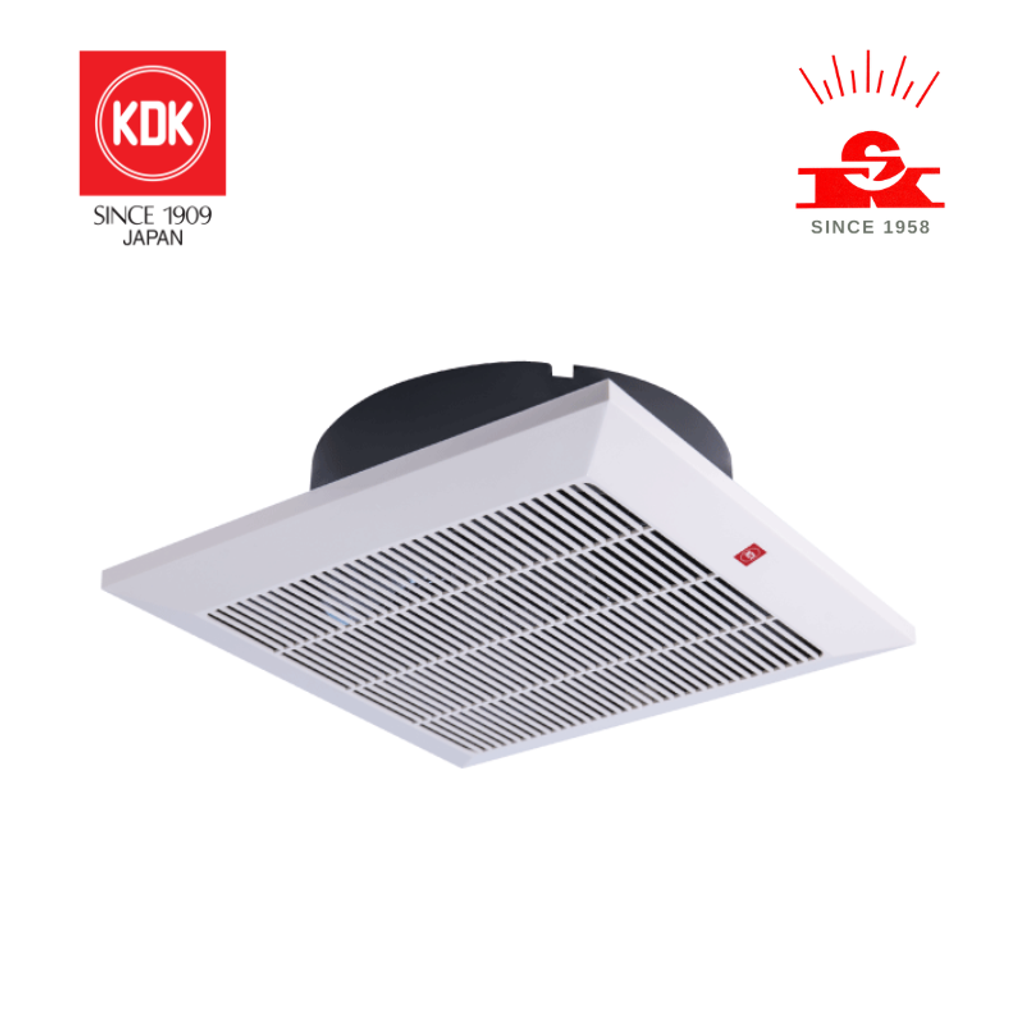

25TGQ7 — 10 Inch (25cm)

For larger bathrooms, commercial washrooms, kitchens and spaces that need stronger air extraction. Two-speed operation gives you flexibility between quiet and full-power modes.

• Blade Diameter: 25cm / 10 inches
• Airflow Capacity: 367 CFM
• Motor: 30.3W (High) / 24.8W (Low), 4 Pole Condenser
• Speed: 1,172 RPM (High) / 959 RPM (Low)
• Voltage: 220–240V / 50Hz
• Noise Level: 45 dB
• Net Weight: 1.90 kg

COMMON FEATURES — ALL MODELS

• Q-Blade design — engineered for perfect balance and quiet operation
• Ceiling mount propeller type — draws air upward through ceiling cut-out to roof or designated outlet
• Suitable for indoor residential and light commercial installation
• KDK 3-year warranty — register at warranty.kdk.com.my after installation
• Energy efficient condenser motor — low running cost

BEST FOR

• Bathrooms and wet rooms — removes moisture to prevent mould and mildew
• Kitchens — extracts cooking heat, steam and odours
• Toilets and utility rooms — improves air circulation in enclosed spaces
• Renovation projects — straightforward ceiling installation by licensed electrician
• Commercial washrooms, staff toilets and pantry areas

HOW TO CHOOSE THE RIGHT SIZE

• 6" (15TGQZ) — small bathroom or toilet, room area below 5 sqm
• 8" (20TGQF) — standard bathroom or kitchen, room area 5–10 sqm
• 10" (25TGQ7) — large bathroom, commercial washroom or kitchen above 10 sqm

Not sure which size fits your ceiling opening or room? WhatsApp our team at See Kwong Electric in Ipoh — we'll confirm the right model before you buy.
