How to Build Safe, Reliable Electrical Panels in Malaysia

By See Kwong Electric (Since 1958)

When it comes to electrical systems, low voltage (LV) protection and distribution boards (DB) are not just “boxes with breakers”. They are the heart of safety, reliability, and uptime for homes, shops, factories, and commercial buildings.

At See Kwong Electric, we’ve been supplying LV protection components in Malaysia since 1958. This guide is written to help homeowners, electricians, contractors, and facility managers understand how LV protection really works — and how to avoid common (and costly) mistakes.

What Is LV Protection (And Why It Matters)

LV protection refers to devices that protect electrical circuits operating at ≤ 1kV AC (standard in Malaysia) from:

• Overload

• Short circuit

• Earth leakage

• Surge and lightning damage

Without proper LV protection:

• Cables overheat 🔥

• Equipment gets damaged 💸

• Fire risk increases

• Downtime becomes frequent

Good LV protection is not about the cheapest breaker — it’s about correct selection, coordination, and installation.

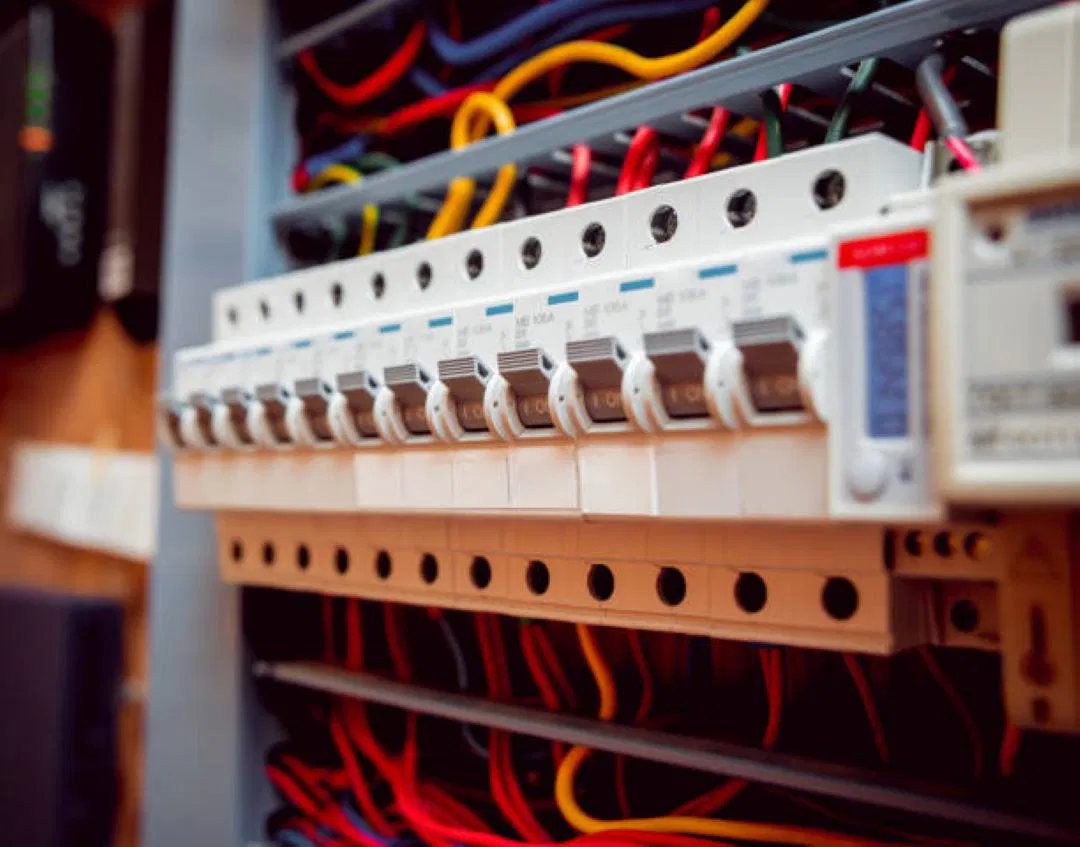

What Is a Distribution Board (DB)?

A Distribution Board (DB) is where incoming power is safely divided into multiple circuits.

Typical Malaysian DB setup includes:

• Main isolator

• RCCB / ELCB

• MCBs or MCCBs

• Surge protection device (SPD)

• Proper earthing & neutral bars

👉 Think of the DB as the traffic control centre for electricity in your building.

Key LV Protection Components Explained (Simple & Practical)

1. MCB – Miniature Circuit Breaker

Used for:

• Lighting circuits

• Socket outlets

• Small appliances

Protects against:

• Overload

• Short circuit

💡 Common ratings in Malaysia: 6A, 10A, 16A, 20A, 32A, 63A

2. MCCB – Moulded Case Circuit Breaker

Used for:

• Main incomers

• Sub-DBs

• Machinery and industrial loads

Advantages:

• Higher current rating

• Adjustable trip settings

• Higher short-circuit capacity (kA)

💡 Ideal for factories, commercial buildings, and large panels.

3. RCCB / ELCB – Earth Leakage Protection

Protects people, not equipment.

Trips when:

• Current leaks to earth (e.g. electric shock risk)

Common Malaysian standard:

• 30mA → Personal protection (homes, offices)

• 100mA / 300mA → Fire protection (industrial)

⚠️ RCCB must always be paired with MCB/MCCB.

4. Surge Protection Device (SPD)

Often overlooked — but critical in Malaysia ⚡

Protects against:

• Lightning surges

• Utility switching surges

Highly recommended for:

• Factories

• Offices with servers

• Smart homes

• CCTV & automation systems

DB Design Mistakes We Commonly See in Malaysia

From decades in the field, these are the top reliability killers:

❌ Undersized breakers to “save cost”
❌ No surge protection
❌ Wrong RCCB sensitivity
❌ Mixing brands with poor coordination
❌ Poor cable termination & overheating
❌ No spare ways for future expansion

These mistakes don’t fail immediately — they fail silently over time.

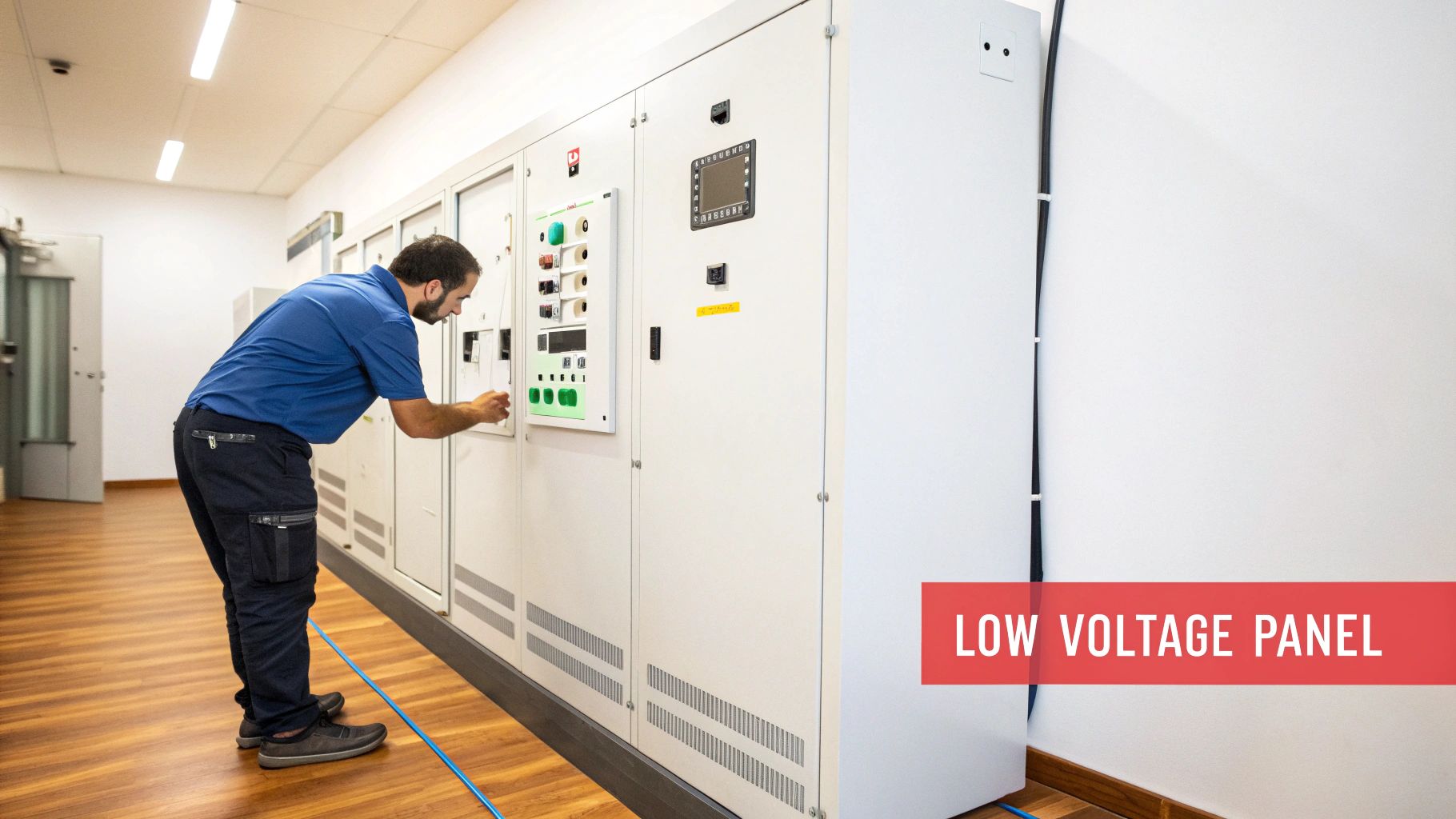

How to Build a Reliable LV Panel (Best Practices)

A reliable DB or LV panel should have:

✅ Correct breaker rating (not guesswork)
✅ Adequate short-circuit capacity (kA)
✅ Selective coordination (main trips last)
✅ Quality brands with proven standards
✅ Proper labeling and documentation
✅ Compliance with MS IEC / Suruhanjaya Tenaga (ST) requirements

At See Kwong Electric, we help customers select practical, compliant, and long-lasting solutions — not overkill, not under-protected.

Home vs Commercial vs Industrial DB – Key Differences

Residential DB

• MCB + RCCB

• 30mA protection

• Smaller fault levels

• Focus on personal safety

Commercial DB

• Higher load diversity

• MCCB incomers

• SPD recommended

• Better selectivity required

Industrial Panels

• High fault current

• MCCB / ACB systems

• Fire-rated RCCB

• Surge + coordination critical

• Downtime = money 💰

Why Experience Matters in LV Protection

LV protection is not just about following a catalogue.

It requires:

• Understanding real-world load behaviour

• Knowing Malaysian supply conditions

• Selecting proven brands

• Avoiding nuisance trips

• Planning for future expansion

This is where experience since 1958 makes a difference.

Why Buy LV Protection Components from See Kwong Electric

✔ Established since 1958
✔ Trusted by electricians, factories & contractors
✔ Practical advice — not sales talk
✔ Stock for residential, commercial & industrial needs
✔ Reliable brands & proper ratings
✔ Based in Malaysia, for Malaysian standards

Final Thoughts: Safety, Reliability & Peace of Mind

A good LV protection system:

• Protects lives

• Protects assets

• Reduces downtime

• Saves money long-term

If you’re unsure whether your DB, LV panel, or protection setup is correct — it’s always better to ask before something fails.
